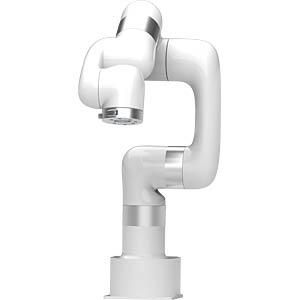

Package contains: 1. Robotic Arm x 1 2. Microcontroller Box x 1 3. Power cable for the Control Box x 1 4. Power cable for the Robotic Arm x 1 5. Communication cable for the Robotic Arm x 1 6. Ethernet Cable x1 7. Robotic Arm end effector adapter cable x1Flexible deploymentwith safe feature✔ Hand teaching, lightweight, space-saving and easy to re-deploy to multiple applications without changing your production layout.Perfectly for recurrent tasks.✔ Collision detection are available for all of our cobots. Your safety is always the top priority.Graphical interface for beginner-friendly programming✔ Compatible with various of operating systems, including macOS and Windows.✔ Web-based technology compatible with all major browsers.✔ Drag and drop to create your code in minutes.✔ Fully functional open-source Python/C++ SDK provides more flexible programming.✔ ROS/ROS2 packages are ready-to-go.✔ Example codes help you to deploy the robot smoothly.Powerful and open source SDK at your fingertipsBeginner-friendlySupport​Dedicated online support to figure out the proper way to run the robot.Realtime ChatRealtime chat support on you laptop or mobile phone.Plug & PlayPlug-and-play. Unbox, set-up, calibrate. No technician needed.Warranty1 year warranty Minimum 3 years of full-time useSPECSWorking RangeNote: The following working range diagrams are only for safety assessment.Robot Arm specification -DoF 6 Reach 440mm Payload 1kg Repeatability 0.2mm Speed 500mm/s EOAT ISO 9409-1-50 Motor Type DC Brushless Control Box Build-in I/O Ports (Base) 8 I/O Ports (EOAT) 4 Robot communication Modbus TCP Developing Environment Python/ROS/C++ GUI UFACTORY Studio Maximum Speed 90°/s Joint 1 ±360° Joint 2 ±150° Joint 3 -3.5°~300° Joint 4 ±360° Joint 5 ±124° Joint 6 ±360°

Contains - Raspberry Pi 4 Model B 4GB for Manipulator XCamera for Raspberry Pi U2D2 PHBU2D2SMPS 12V 5A PS-10 [INTL]

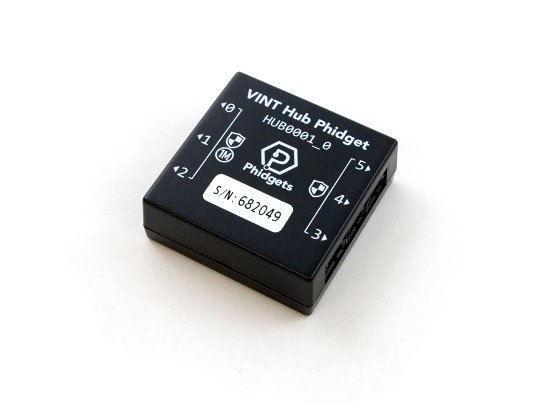

The VINT Hub is one of the most commonly used Phidgets. Connect up to 6 devices to your computer through a single USB port.Each VINT port can perform one of four roles:Communicate with an intelligent VINT DeviceRead a 0-5V Voltage or ratiometric sensorAct as a digital outputRead switches as a digital inputThe mode of each port is set in your program, allowing for flexible use in projects.Technical details:Plug and Program - Device is automatically discovered by the Phidget API when attachedPulse Width Modulation Enabled - Ports in DigitalOutput mode support PWM, useful for dimming LEDs and other simple componentsAnalog Sensor compatible - Each port is backward compatible with both ratiometric and non-ratiometric Phidget analog sensorsUSB Voltage Supply - Each port has a power and ground pin providing direct access to the USB voltage supplyImproved Performance on newer VINT devices:Better immunity on compatible VINT devices, resulting in longer maximum cable lengthHigher speeds on compatible VINT devices Product SpecificationsBoardControlled ByUSB (Mini-USB)Number of VINT Ports6Electrical PropertiesUSB Voltage Min4.5 V DCUSB Voltage Max5.3 V DCUSB SpeedFull SpeedCurrent Consumption Min30 mAAvailable External Current470 mAVoltage InputsVoltage Input Resolution* 16 bitSensor Input Impedance324 kΩInput Voltage Min (DC)0 V DCInput Voltage Max (DC)5.3 V DCVoltage Input Noise** ± 500 μV DCSampling Interval Max60 s/sampleNumber of Voltage Inputs6 (Shared)Sampling Interval Min1 ms/sampleDigital InputsPull-up Resistance200 kΩLow Voltage Max (True)1 V DCHigh Voltage Min (False)2 V DCLow Voltage Trigger Length Min3 msHigh Voltage Trigger Length Min3 msDigital Input Voltage Max5.5 V DCDigital Input TypeSwitch (Active Low)Number of Digital Inputs6 (Shared)Digital OutputsSeries Resistance510 ΩDigital Output Available Current8.1 mADigital Output Voltage Min0 V DCDigital Output Voltage Max3.3 V DCPWM Frequency Max50 kHzPWM Resolution0.8 %Number of Digital Outputs6 (Shared)Physical PropertiesOperating Temperature Min-40 °COperating Temperature Max85 °CCustoms InformationCanadian HS Export Code8471.80.00American HTS Import Code8471.80.40.00* Voltage measured with a 12-bit ADC, oversampled to 16-bits.** At a data interval of 4ms. Noise will decrease as data interval increases.DocumentsMechanical DrawingsDownload 3D Step File

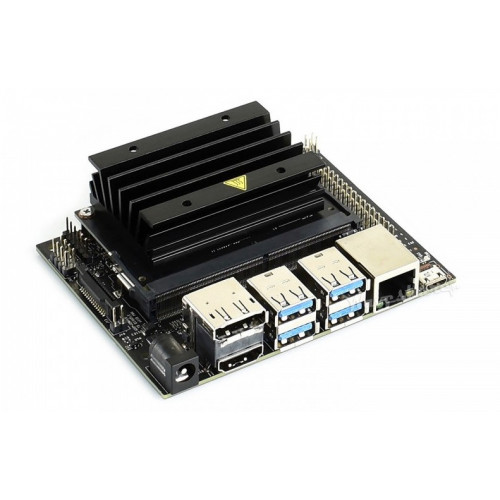

Overview : NVIDIA® Jetson Nano™ Developer Kit is a small, powerful computer that lets you run multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing. All in an easy-to-use platform that runs in as little as 5 watts.It’s simpler than ever to get started! Just insert a microSD card with the system image, boot the developer kit, and enjoy using the same NVIDIA JetPack SDK used across the NVIDIA Jetson™ family of products.JetPack is compatible with NVIDIA’s world-leading AI platform for training and deploying AI software, and reduces complexity and effort for developers by supporting many popular AI frameworks, like TensorFlow, PyTorch, Caffe, and MXNet. It also includes a full desktop Linux environment and out-of-the-box support for a variety of popular peripherals, add-ons, and ready-to-use projects.Get started today with the Jetson Nano Developer Kit. We look forward to seeing what you create!Technical Specifications :GPU128-core MaxwellCPUQuad-core ARM A57 @ 1.43 GHzMemory4 GB 64-bit LPDDR4 25.6 GB/sStoragemicroSD (not included)Video Encode4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)Video Decode4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)Camera1x MIPI CSI-2 DPHY lanesConnectivityGigabit Ethernet, M.2 Key EDisplayHDMI 2.0 and eDP 1.4USB4x USB 3.0, USB 2.0 Micro-BOthersGPIO, I2C, I2S, SPI, UARTMechanical100 mm x 80 mm x 29 mmDeveloper Kit Contents: 1. Jetson Nano Development Board2. Nvidia Jetson Nano Module3. Heatsink for Jetson Nano Module4. Power Adapter

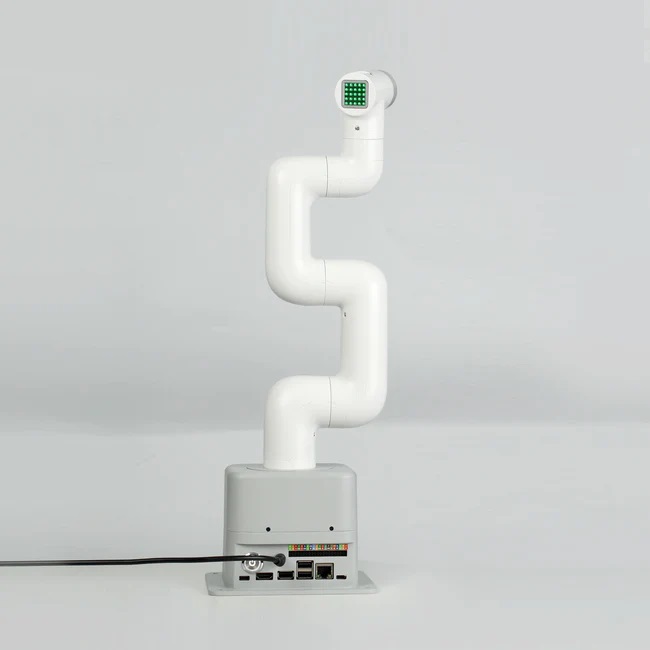

 FabFly AI Development Kit - myCobot 280 with Jetson Nano uses NVIDIA® Jetson Nano™ core board as the main controller and comes with a customized robot operating system, Ubuntu Mate 20.04 LTS. With no need for an additional PC controller, it can be used by simply connecting a display, keyboard, and mouse. It is an ideal assistant for quick construction of robotic applications, control logic development, ROS simulation experiments, and more. It helps users quickly begin their six-axis robotic arm learning and application with machine vision and robotics. Easy Entry to Vision ApplicationsmyCobot 280 JN 2023 is built-in with NVIDIA Jetson Nano, providing powerful image processing capabilities. It comes with a standard 2D camera module at the end, making it easy and convenient for eye-in-hand application development. Simple & Fast System DevelopmentBuilt-in with the myCobot series universal Ubuntu Mate 20.04 operating system, integrated with multiple development control environments including myBlockly, Python, ROS 1/2, and supports the extension of dozens of end control accessories, greatly expanding the application capabilities of the robot scene. Creative DevelopmentExperience the thrill of industrial robot programming with myCobot 280 series, featuring cutting-edge algorithms and over 90 control interfaces. With a focus on simplicity and understanding, myCobot brings a realistic programming experience, even though it is not an industrial-grade robot. Commercial ExplorationThe myCobot 280 series of mechanical arms support the development of applications that can be used in a variety of environments, including PC, industrial computers, and embedded devices. The product supports over 10 accessories, including a base, end extension, and peripheral products, which can be combined to complete complex project applications. These applications are suitable for commercial exhibitions. PARAMETERSWorking Radius280mmPayload250gJetson NanoUbuntu MatePractical TeachingDrag & TeachLegoROS1ROS2PythonmyBlocklyOpenCVHDMIGrove Interface ROS SIMULATION CONTROL SUPPORTWe provide ROS1 and ROS2 multi-version development support, and different versions have the same extended support, and provide RVIZ and MOVEIT demonstration cases under different versions to meet the in-depth development needs of users.

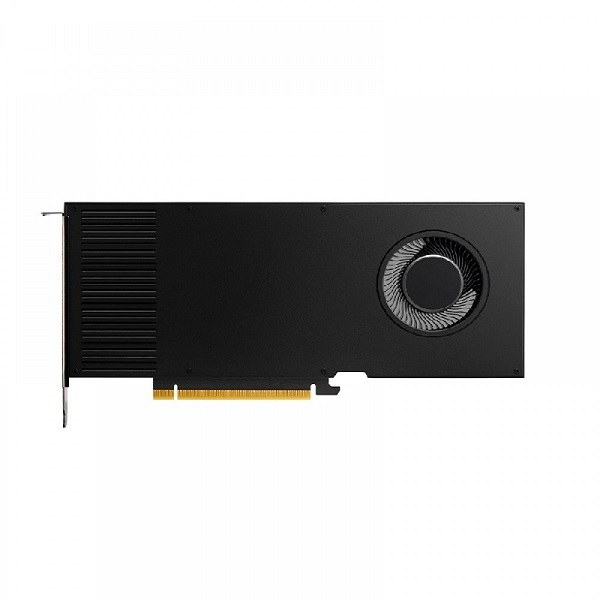

The FabFly AI Development Kit - RTX A4000 is the most powerful single-slot GPU for professionals, delivering real-time ray tracing, AI-accelerated compute, and high-performance graphics to your desktop. Engineer next-generation products, design cityscapes of the future, and create immersive entertainment experiences with a solution that fits into a wide range of systems so you can work without limits.Specifications GenericSupported OSWindow LinuxPower Input6 pinColourBlackCUDA Cores6144Cooling SolutionActive Cooling SolutionMemory Interface Width256-bit GDDR6Display Port4x DisplayPort 1.4aPerformance ParametersMemory Size16 gigabyteMemory Speed1750 megaHertz Powered by the NVIDIA Ampere ArchitectureNVIDIA Ampere Architecture-Based CUDA CoresAccelerate graphics workflows with the latest CUDA® cores for up to 2.7X single-precision floating-point (FP32) performance compared to the previous generation.Second-GenerationRT Cores Produce more visually accurate renders faster with hardware-accelerated motion blur and up to 2X faster ray-tracing performance than the previous generation.Third-GenerationTensor Cores Boost AI and data science model training with up to 11X faster training performance compared to the previous generation with hardware-support for structural sparsity.16GBof GPU MemoryDrive graphics and compute intensive workflows with 16 GB of GDDR6 memory with ECC, twice the memory size of the previous generation.Single-SlotForm FactorLeverage a power-efficient, single-slot form factor that fits into a wide range of workstation chassis.PCI ExpressGen 4Improve data-transfer speeds from CPU memory for data-intensive tasks with support for PCI Express Gen 4.Learn more about the NVIDIA Ampere architecture

SpecificationsSupported OSWindow LinuxPower Input6 pinColourBlackCUDA Cores6144Cooling SolutionActive Cooling SolutionMemory Interface Width256-bit GDDR6Display Port4x DisplayPort 1.4aPerformance ParametersMemory Size16 gigabyteMemory Speed1750 megaHertz

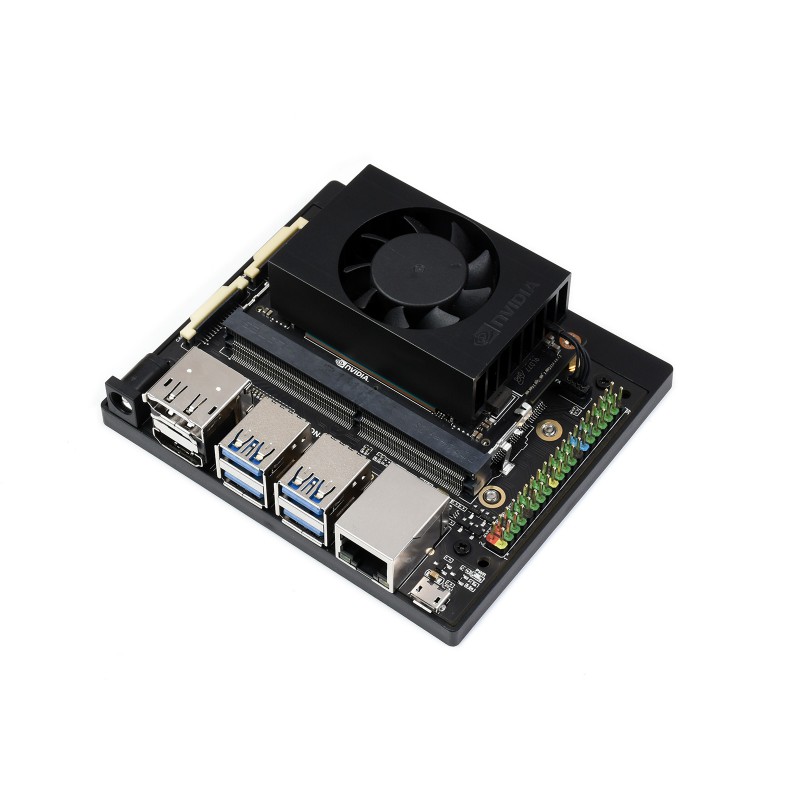

Alternative Solution For Jetson Xavier NX Developer Kit  Includes Jetson Xavier NX 8/16 GB Module, JETSON-IO-BASE-B, 128GB NVMe SSD, power adapter and cooling fan.Comes with Nvidia Jetson Xavier NX Module - Technical Specifications Jetson Xavier NX 16GBJetson Xavier NXAI Performance21 TOPSGPU384-core NVIDIA Volta™ GPU with 48 Tensor CoresCPU6-core NVIDIA Carmel ARM®v8.2 64-bit CPU6MB L2 + 4MB L3Memory16 GB 128-bit LPDDR4x59.7GB/s8 GB 128-bit LPDDR4x59.7GB/sStorage16 GB eMMC 5.1Power10 W | 15 W | 20 WPCIe1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*CSI CameraUp to 6 cameras (24 via virtual channels)14 lanes (3x4 or 6x2) MIPI CSI-2D-PHY 1.2 (up to 30 Gbps)Video Encode2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)Video Decode2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)Display2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0DL Accelerator2x NVDLA EnginesVision Accelerator7-Way VLIW Vision ProcessorNetworking10/100/1000 BASE-T EthernetMechanical69.6 mm x 45 mm260-pin SO-DIMM connector* Please refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features Compact, Powerful Performance At The Edge21 TOPS AI PerformanceUp To 21 TOPS Of Accelerated Computing Delivers The Horsepower To Run Modern Neural Networks In Parallel And Process Data From Multiple High-Resolution Sensors, That Is A Requirement For Full AI SystemsWith Cloud-Native SupportJetson Xavier NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.Ideal For Critical Embedded ApplicationsJetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.Image Recognition Object Recognition Semantic Segmentation Pose Estimation Monocular Depth Position TrackingAI Computing Neural Networks SDKJetson Development Pack (JetPack) Is An On-Demand All-In-One Package That Bundles And Installs All Development Software Tools For The NVIDIA Jetson Embedded Platform. Onboard ResourcesOutline Dimensions

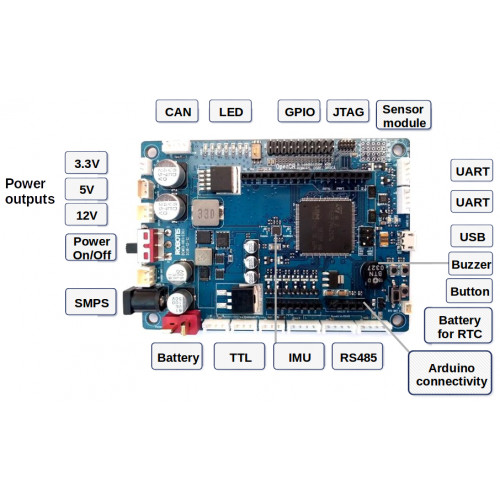

Fabfly AI Kit - OpenCR1.0 (Open-source Control module for ROS) is an open source robot controller embedded with a powerful MCU from the ARM Cortex-M7 line-up. The hardware, software, schematics, PCB Gerber, BOM, and firmware source codes of the OpenCR1.0, the main controller used in the official ROS education platform TurtleBot3, are accessible and open to the public. Supports RS-485 and TTL to control the Dynamixels, and offers UART, CAN and a variety of other communication environment, development tools such as Arduino IDE are available as well. It has the advantage of being able to operate more powerfully when used with a host controller such as SBC (Single Board Computer). It provides various exclusive sources based on ROS, so that you can maximize the functions of OpenCR1.0 when using ROS.Package ComponentsOpenCR1.01USB Micro B Cable1H/W SpecificationsMicrocontrollerSTM32F746ZGT6 / 32-bit ARM Cortex®-M7 with FPU (216MHz, 462DMIPS)SensorsGyroscope 3Axis, Accelerometer 3Axis, Magnetometer 3Axis (MPU9250)ProgrammerARM Cortex 10pin JTAG/SWD connectorUSB Device Firmware Upgrade (DFU)SerialExtension pins32 pins (L 14, R 18) *Arduino connectivitySensor module x 4 pinsExtension connector x 18 pinsCommunication circuitsUSB (Micro-B USB connector/USB 2.0/Host/Peripheral/OTG)TTL (B3B-EH-A / Dynamixel)RS485 (B4B-EH-A / Dynamixel)UART x 2 (20010WS-04)CAN (20010WS-04)LEDs and buttonsLD2 (red/green) : USB communicationUser LED x 4 : LD3 (red), LD4 (green), LD5 (blue)User button x 2PowersExternal input source5 V (USB VBUS), 7-24 V (Battery or SMPS)Default battery : LI-PO 11.1V 1,800mAh 19.98WhDefault SMPS : 12V 5AExternal output source12V@1A(SMW250-02), 5V@4A(5267-02A), 3.3V@800mA(20010WS-02)External battery Port for RTC (Real Time Clock) (Molex 53047-0210)Power LED: LD1 (red, 3.3 V power on)Reset button x 1 (for power reset of board)Power on/off switch x 1Dimensions105(W) X 75(D) mmMass60gDiagramCompatible ProductsDYNAMIXEL X-Series DYNAMIXEL AX/MX Series (Requires Molex-JST convertible cable)DYNAMIXEL P-Series (Requires Molex-JST convertible cable)Robotis Sensor Products

Onboard microcontrollersSTM32F405 main application MCU (Cortex-M4, 168MHz, 192kb SRAM, 1Mb flash)nRF51822 radio and power management MCU (Cortex-M0, 32Mhz, 16kb SRAM, 128kb flash)micro-USB connectorOn-board LiPo charger with 100mA, 500mA and 980mA modes availableFull speed USB device interfacePartial USB OTG capability (USB OTG present but no 5V output)8KB EEPROMIMU specification3 axis accelerometer / gyroscope (BMI088)High precision pressure sensor (BMP388) Mechanical specificationsTakeoff weight: 27gSize (WxHxD): 92x92x29mm (motor-to-motor and including motor mount feet)
