FabFly crazyflie 2.1
Product number: SW10201
Product information "FabFly crazyflie 2.1"
Onboard microcontrollers
- STM32F405 main application MCU (Cortex-M4, 168MHz, 192kb SRAM, 1Mb flash)
- nRF51822 radio and power management MCU (Cortex-M0, 32Mhz, 16kb SRAM, 128kb flash)
- micro-USB connector
- On-board LiPo charger with 100mA, 500mA and 980mA modes available
- Full speed USB device interface
- Partial USB OTG capability (USB OTG present but no 5V output)
- 8KB EEPROM
IMU specification
- 3 axis accelerometer / gyroscope (BMI088)
- High precision pressure sensor (BMP388)
Mechanical specifications
- Takeoff weight: 27g

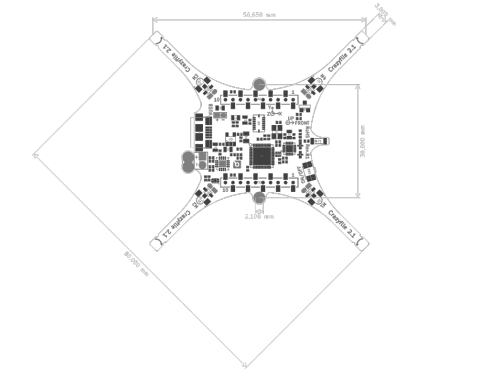

- Size (WxHxD): 92x92x29mm (motor-to-motor and including motor mount feet)
