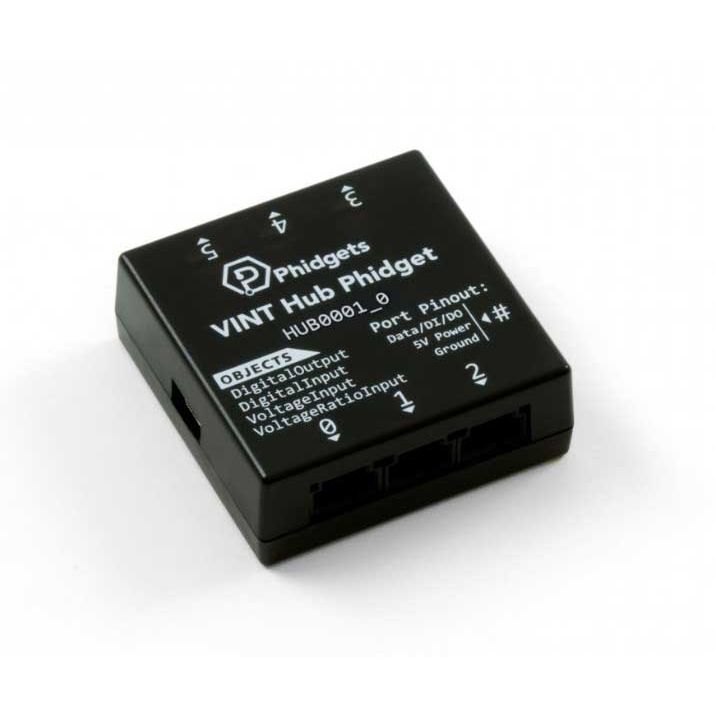

Fab Fly VINT Hub Phidget
Product information "Fab Fly VINT Hub Phidget"
The VINT Hub is one of the most commonly used Phidgets. Connect up to 6 devices to your computer through a single USB port.
Each VINT port can perform one of four roles:
- Communicate with an intelligent VINT Device
- Read a 0-5V Voltage or ratiometric sensor
- Act as a digital output
- Read switches as a digital input
- The mode of each port is set in your program, allowing for flexible use in projects.
Technical details:
- Plug and Program - Device is automatically discovered by the Phidget API when attached
- Pulse Width Modulation Enabled - Ports in DigitalOutput mode support PWM, useful for dimming LEDs and other simple components
- Analog Sensor compatible - Each port is backward compatible with both ratiometric and non-ratiometric Phidget analog sensors
- USB Voltage Supply - Each port has a power and ground pin providing direct access to the USB voltage supply
- Improved Performance on newer VINT devices:
Better immunity on compatible VINT devices, resulting in longer maximum cable length
Higher speeds on compatible VINT devices
Product Specifications
| Board | |
|---|---|
| Controlled By | USB (Mini-USB) |
| Number of VINT Ports | 6 |
| Electrical Properties | |
| USB Voltage Min | 4.5 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Current Consumption Min | 30 mA |
| Available External Current | 470 mA |
| Voltage Inputs | |
| Voltage Input Resolution | * 16 bit |
| Sensor Input Impedance | 324 kΩ |
| Input Voltage Min (DC) | 0 V DC |
| Input Voltage Max (DC) | 5.3 V DC |
| Voltage Input Noise | ** ± 500 μV DC |
| Sampling Interval Max | 60 s/sample |
| Number of Voltage Inputs | 6 (Shared) |
| Sampling Interval Min | 1 ms/sample |
| Digital Inputs | |
| Pull-up Resistance | 200 kΩ |
| Low Voltage Max (True) | 1 V DC |
| High Voltage Min (False) | 2 V DC |
| Low Voltage Trigger Length Min | 3 ms |
| High Voltage Trigger Length Min | 3 ms |
| Digital Input Voltage Max | 5.5 V DC |
| Digital Input Type | Switch (Active Low) |
| Number of Digital Inputs | 6 (Shared) |
| Digital Outputs | |
| Series Resistance | 510 Ω |
| Digital Output Available Current | 8.1 mA |
| Digital Output Voltage Min | 0 V DC |
| Digital Output Voltage Max | 3.3 V DC |
| PWM Frequency Max | 50 kHz |
| PWM Resolution | 0.8 % |
| Number of Digital Outputs | 6 (Shared) |
| Physical Properties | |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8471.80.00 |
| American HTS Import Code | 8471.80.40.00 |
* Voltage measured with a 12-bit ADC, oversampled to 16-bits.
** At a data interval of 4ms. Noise will decrease as data interval increases.
